Designed By: Amethyst Alice Material: Siraya Tech Blu Nylon Colour: Dark blue Manufactured by: Amethyst Artificery Limited

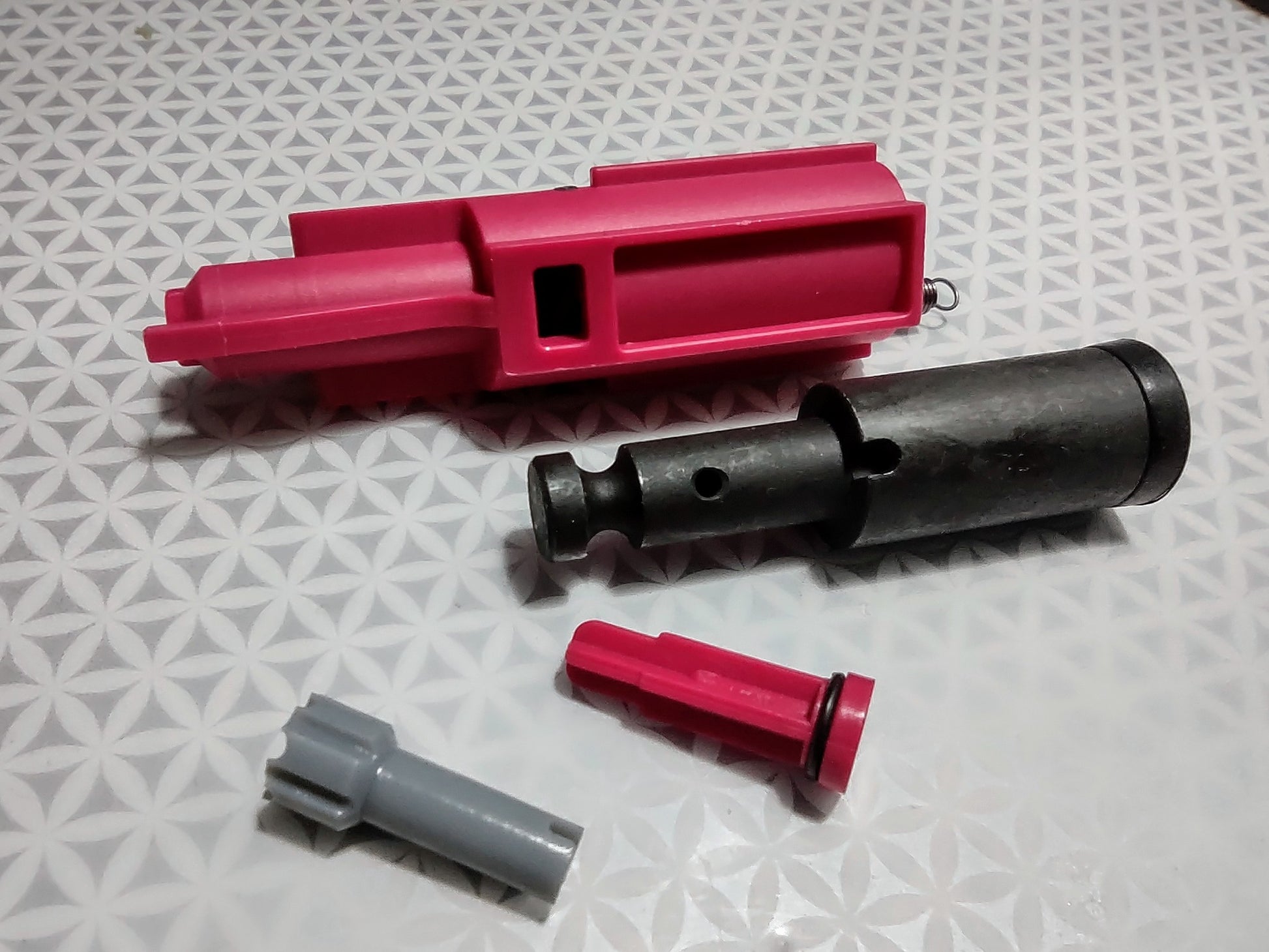

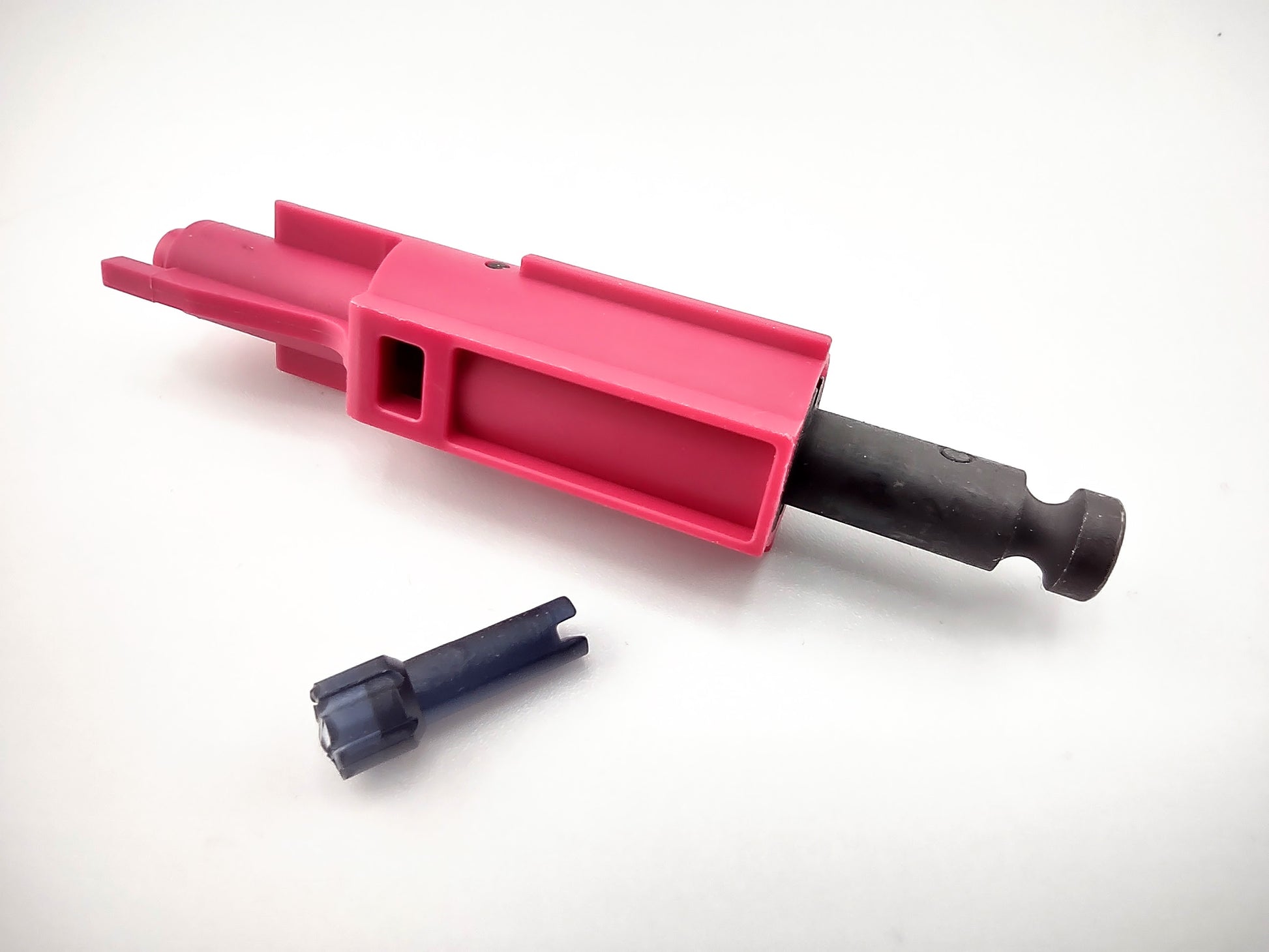

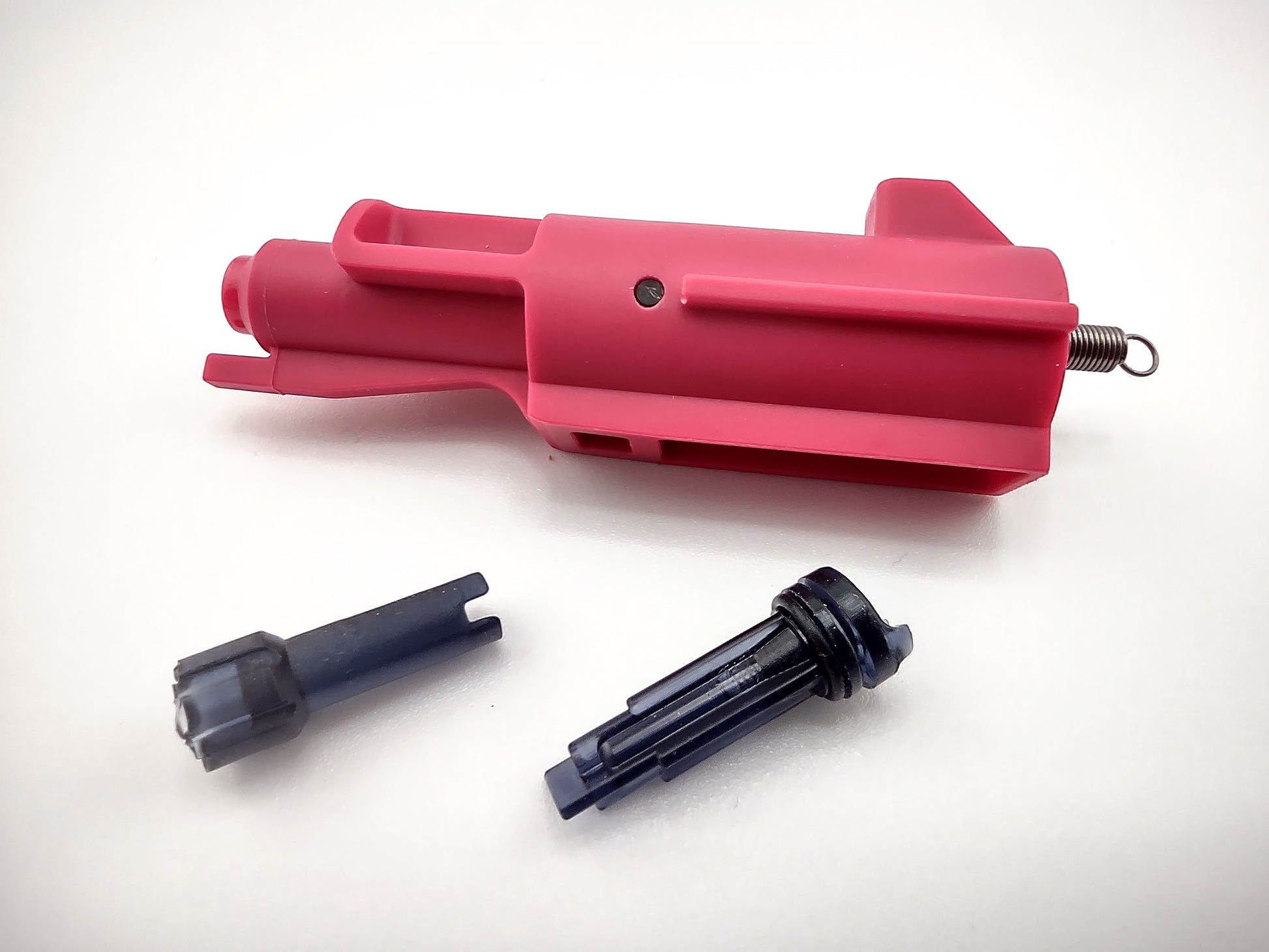

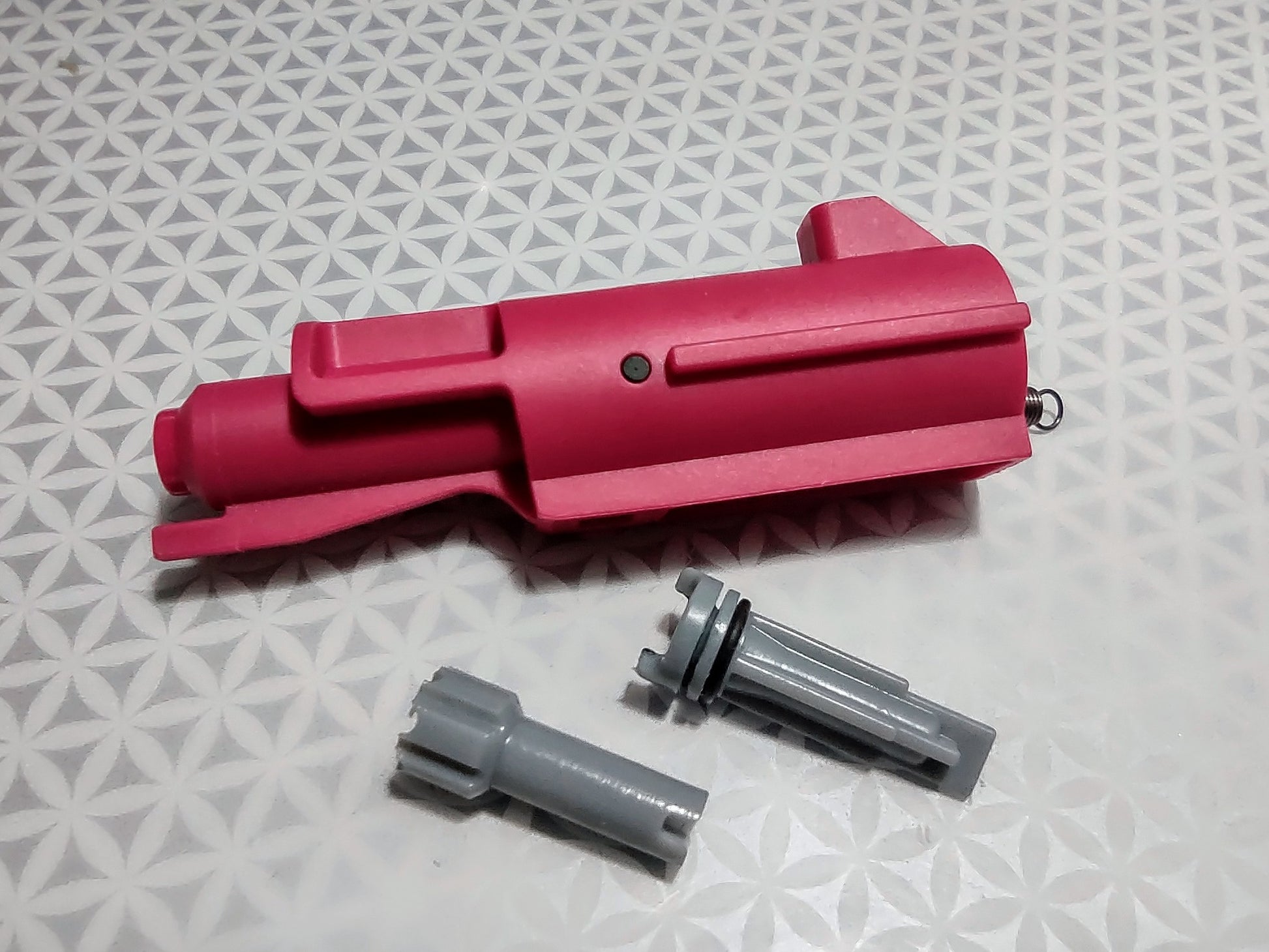

This is a Vorsk VMP-2 Nozzle and Piston that has been pre-fitted with our v3 NPAS design and assembled ready for you to install in your Bolt Carrier.

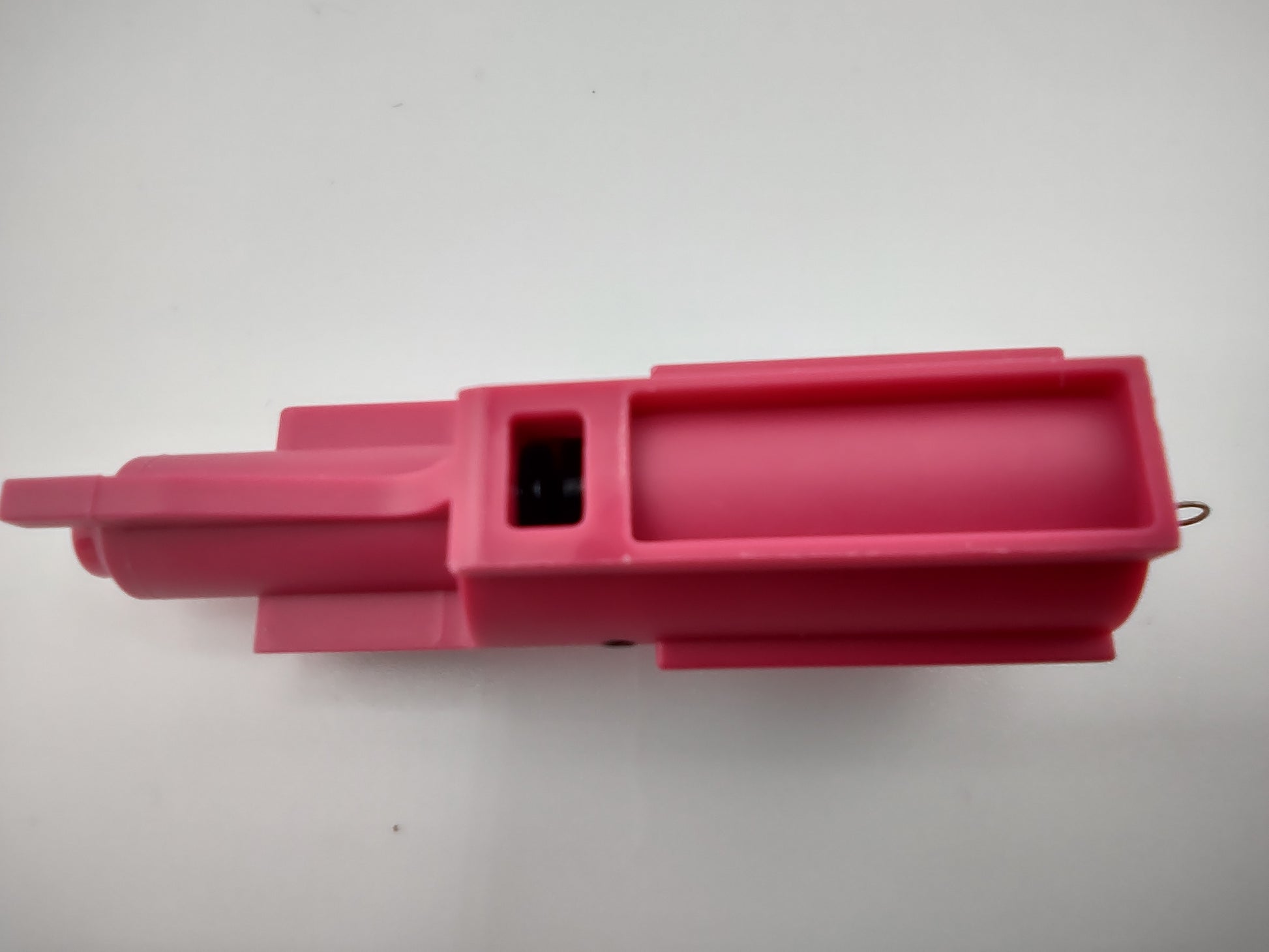

The NPAS replaces the stock rocket valve with an adjustable one which enables the adjustment of the power output of your VMP-2 without needing to disassemble the nozzle or bolt carrier group, simply insert the included tool and gently twist whilst looking through the gas inlet window. The larger the gap between the baseplate and body of the NPAS the lower the output energy of your BBs, close that gap to adjust the power upwards. Tool accepts a 4mm hex key for added leverage and ease of adjustment.

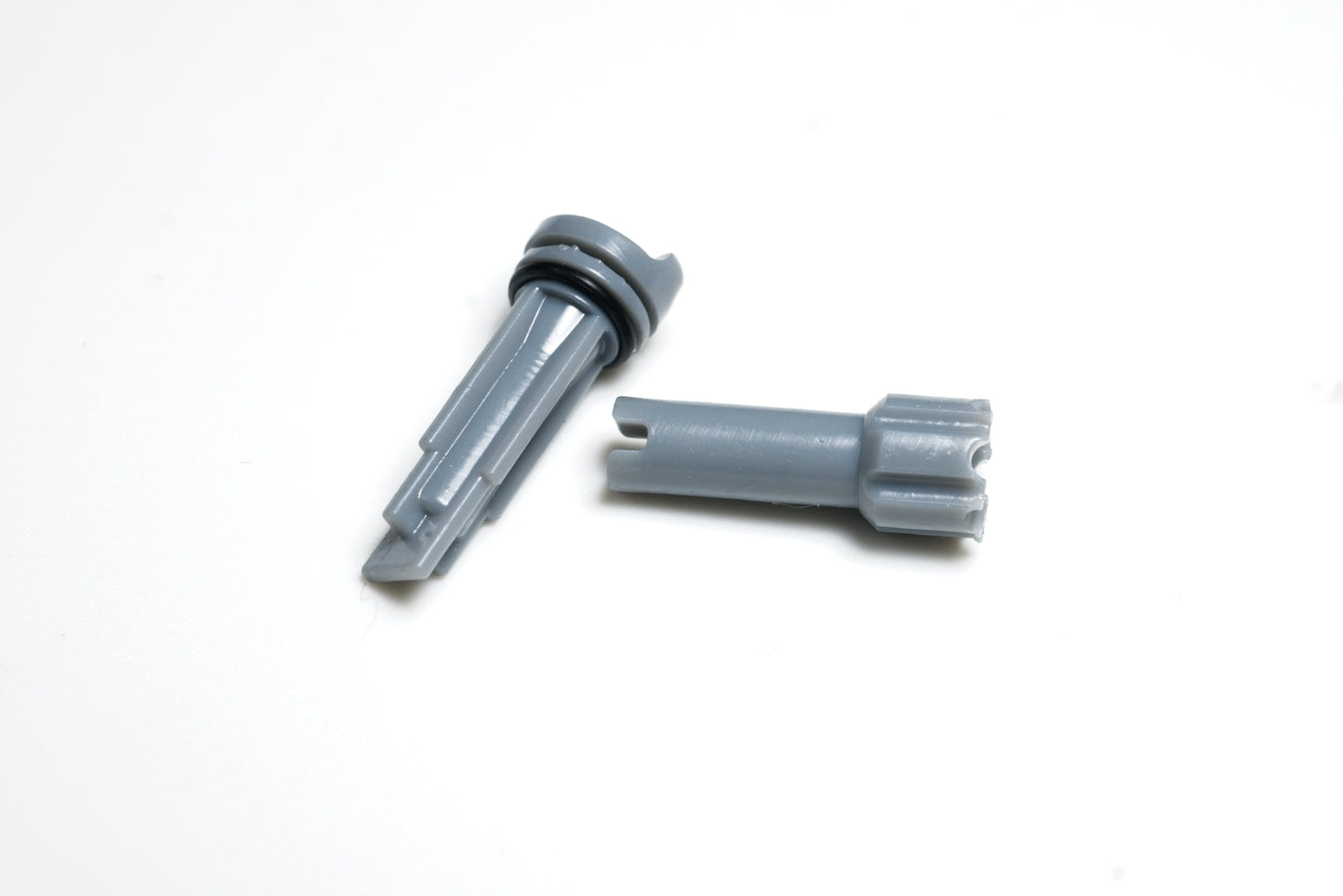

The NPAS design is 3D printed with a Nylon like resin from eSun and fitted with a steel screw. As these parts are small they can easily be broken by over enthusiastic use of the tool, so please be gentle when adjusting them. Once set the NPAS should stay at it’s position, but if through use you find it too loose and it starts to self adjust then a small amount of a mild thread lock can help it maintain position.
NB: The spring inside the nozzle is pre-cut in the factory by the manufacturer, care is taken to install it exactly the way it was shipped by Vorsk, they clearly do not think it is an issue that the end potentially protrudes through the nozzle opening.
