Printed VMP-2 / AR Handguards

Designed By: Amethyst Alice
Material: Babmu PLA Tough+ / eSun PLA+ / Tinmorry PETG-GF
Manufactured by: Amethyst Artificery Limited
Lead Time: Printed to order, 2-3 days

A 3D printed AR spec handguard in varying styles and lengths.

STANAG / NATO / Picatinny top tail, M-Lok compatible slots sides and bottom, QD sling points.  Choice of Barrel nut attachment style.

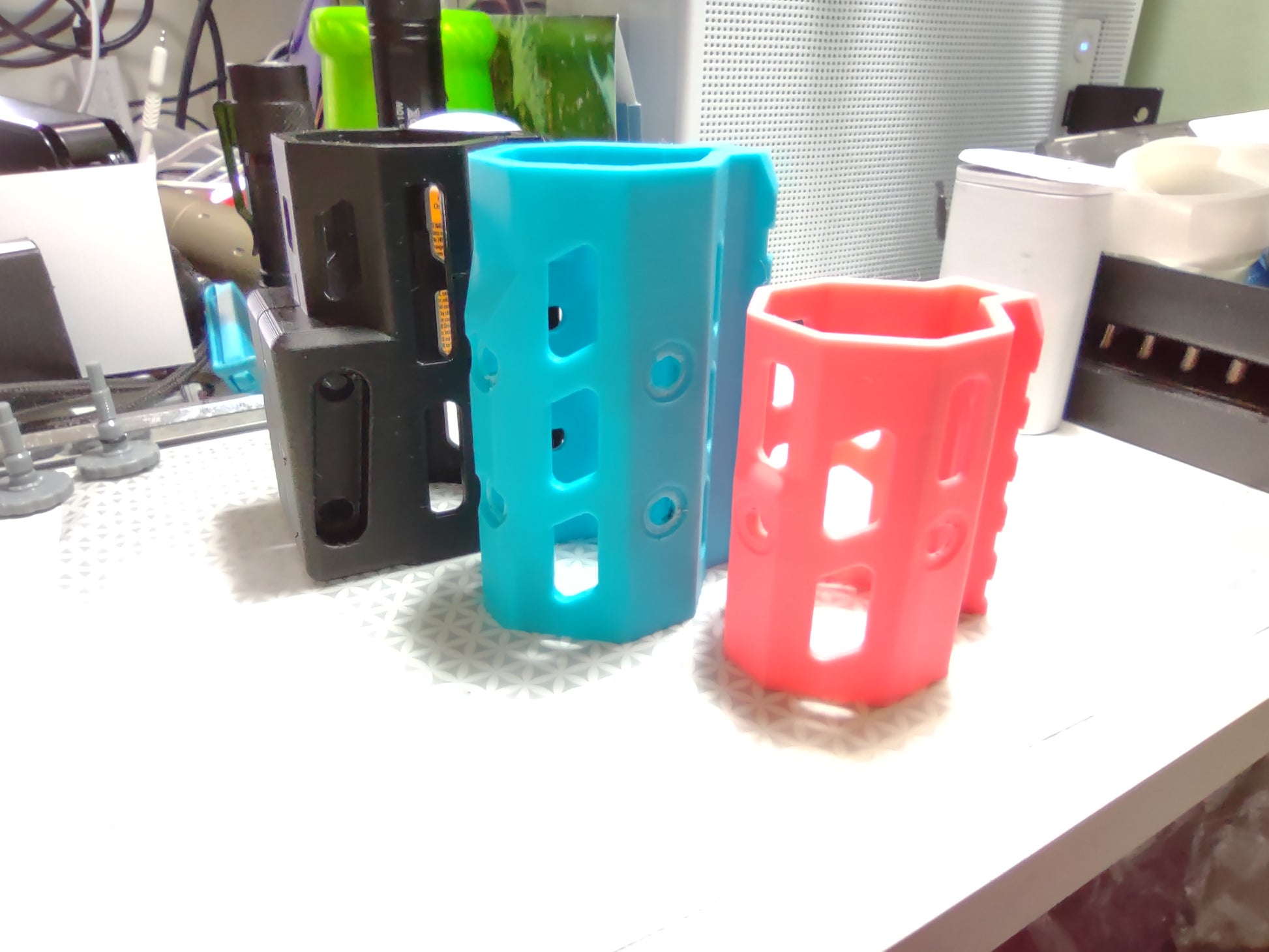

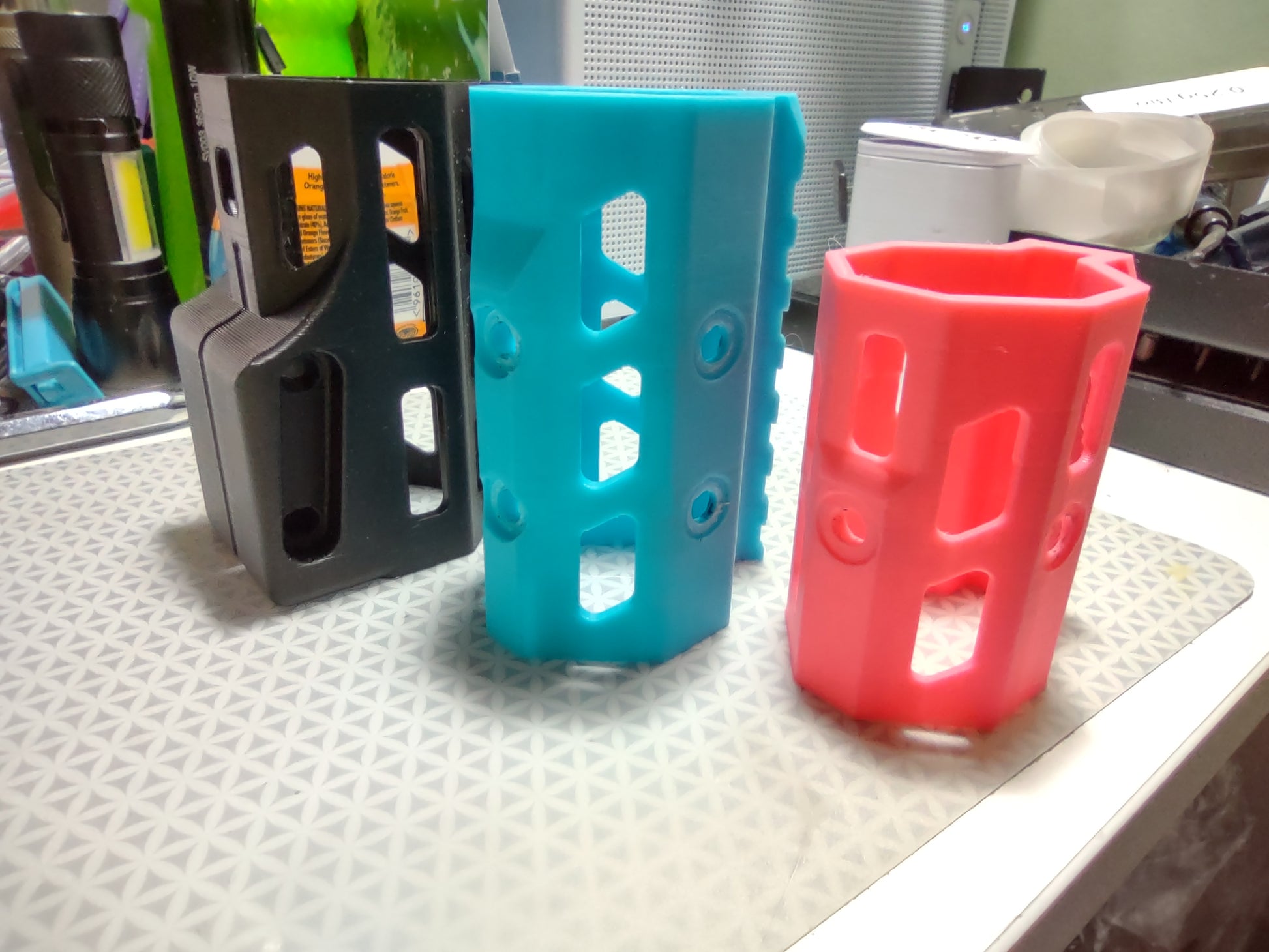

There are three attachment styles used throughout the VMP-2 range.

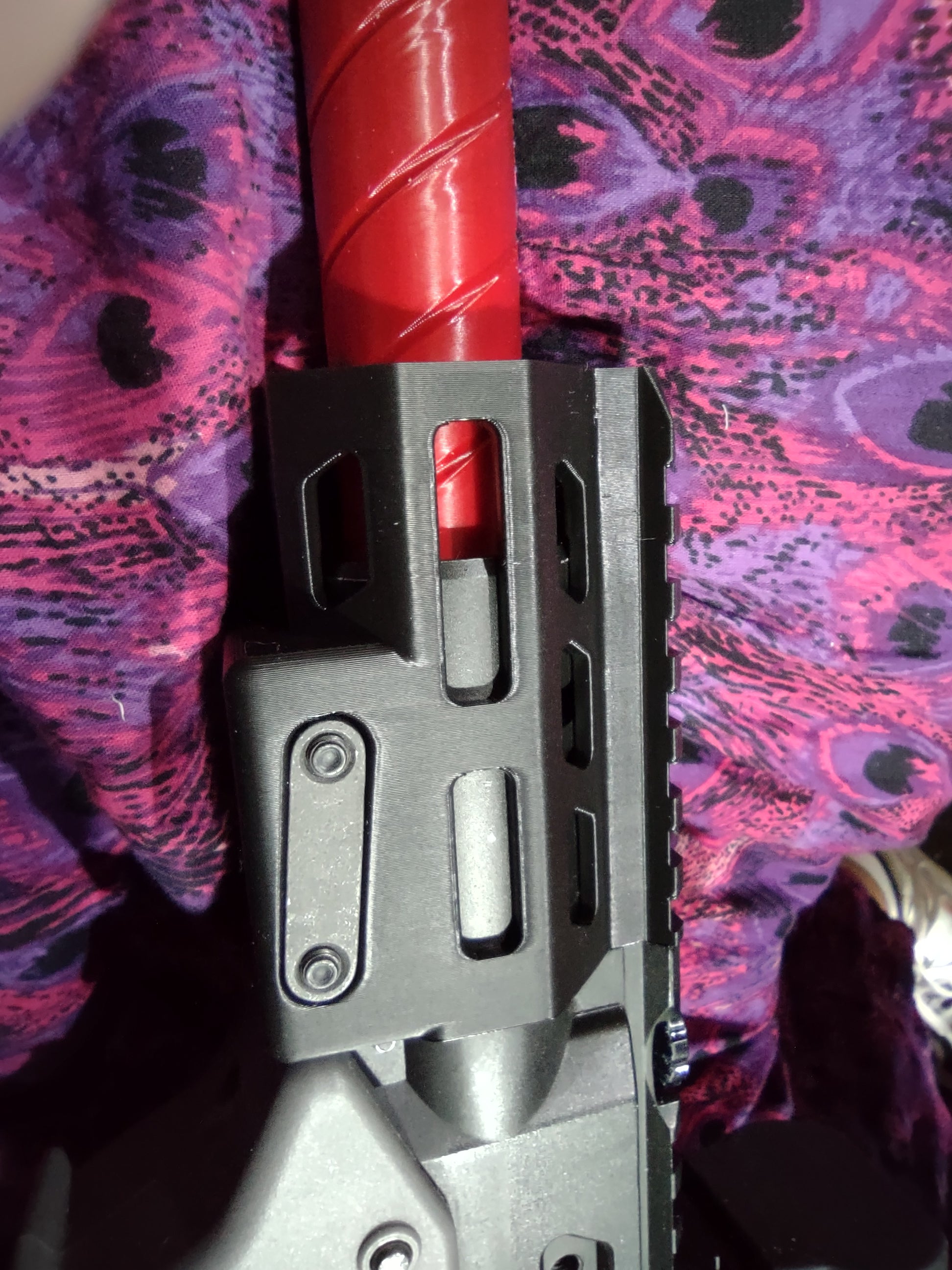

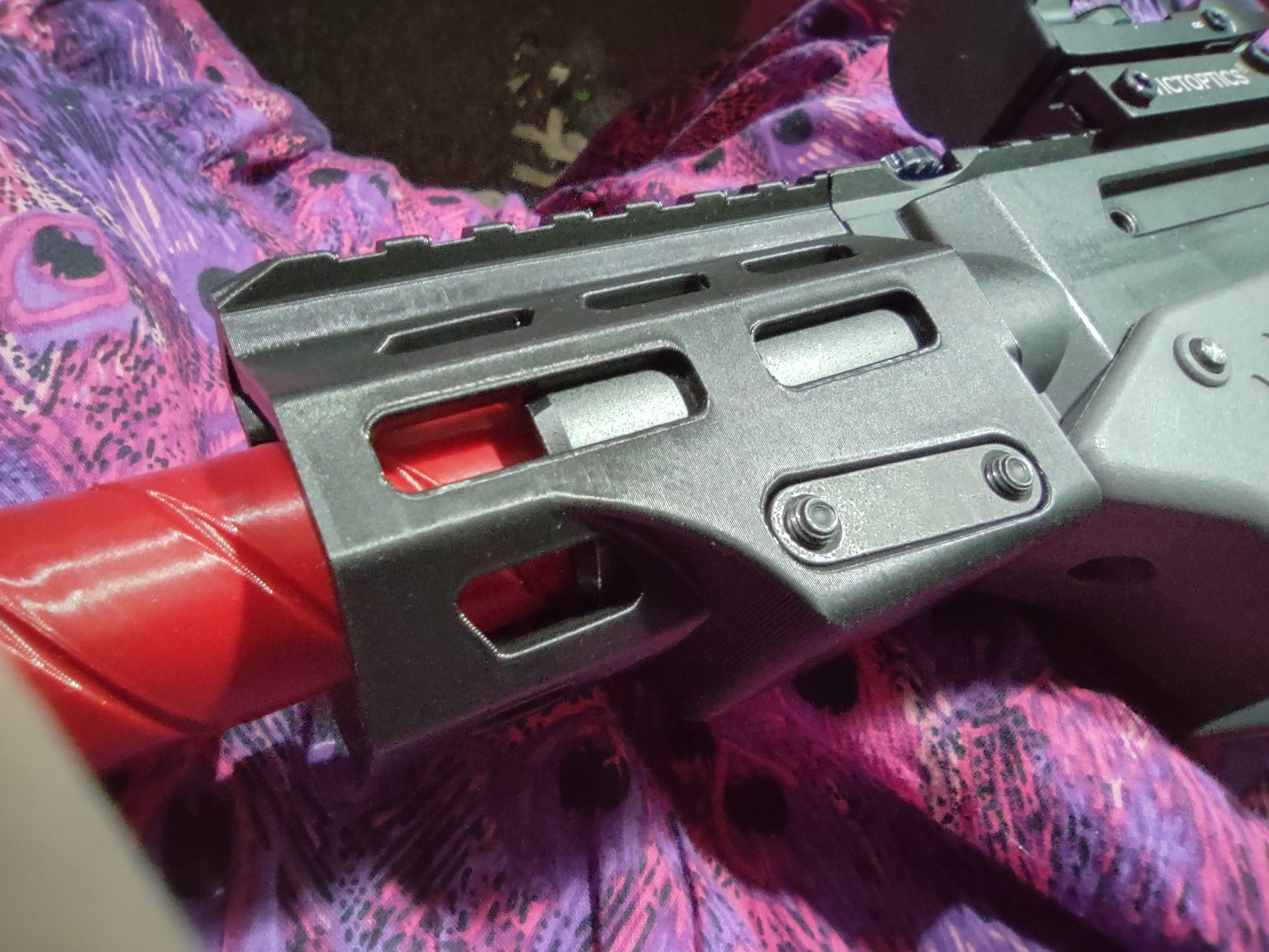

• Style 0 - Used on the VMP-2M,MD,S models. clamps onto the barrel nut using two screws and a plate at the bottom (black)
• Style 1 - Used on the VMP-2C. screws onto the barrel nut with 1 screw each left, right, and underneath. (pink)
• Style 2 - Used on the VMP-2D,SD models. screws onto the barrel nut with 2 screws each left, right, and underneath. (blue)

Whilst the M,MD, and S normally clamp on they should be compatible with Style 1 as well if you get the barrel nut aligned correctly.

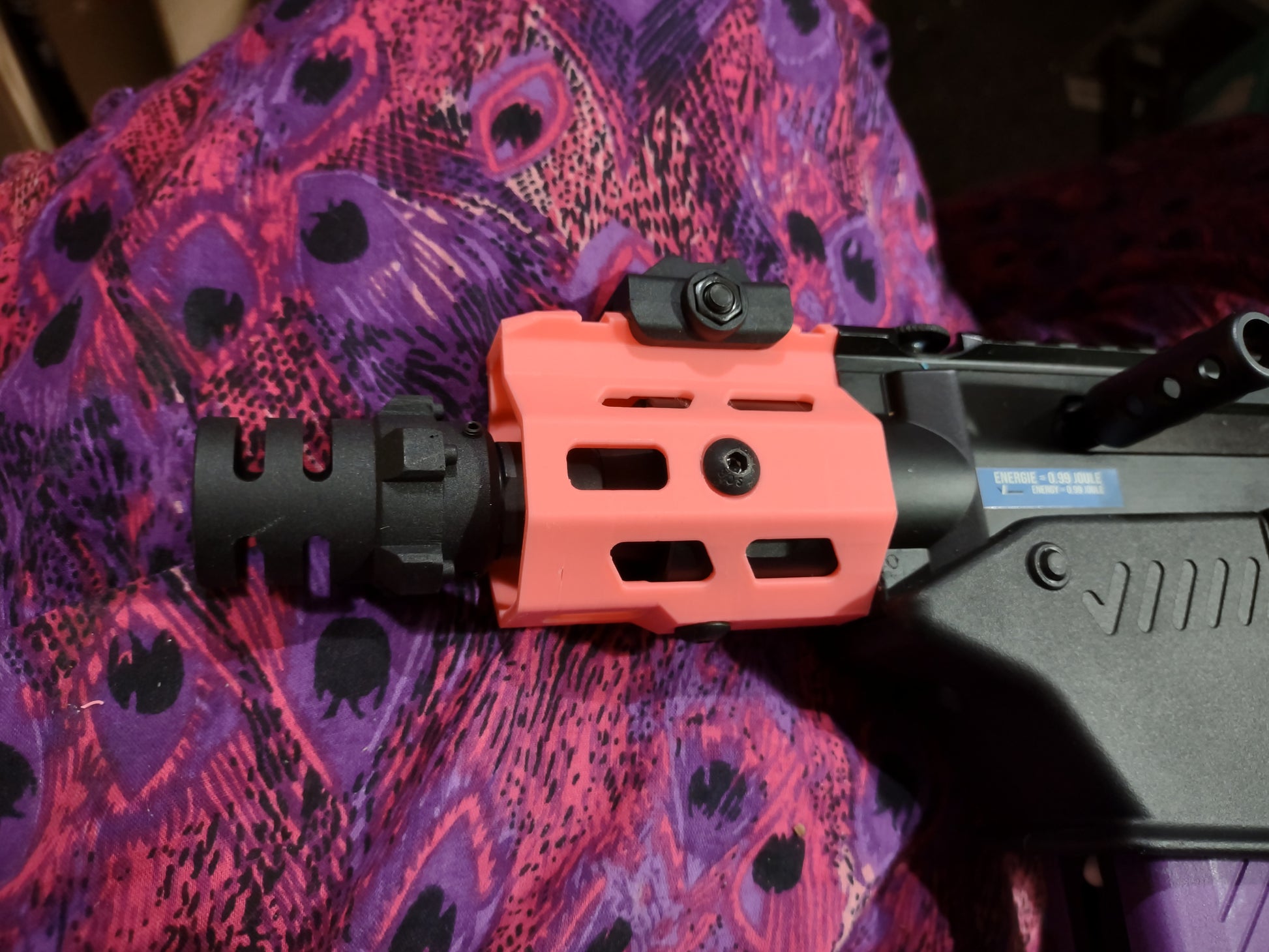

Shortest usable length is around  50mm, as pictured above with the pink 2C handguard. Max length is whatever you can fit on your printer.

Default styles / sizes

• VMP-2C is 80mm / 3" with a style 1 barrel nut
• VMP-2S is 180mm / 7" with a style 0 barrel nut
• VMP-2SD is 180mm / 7" with a style 2 barrel nut

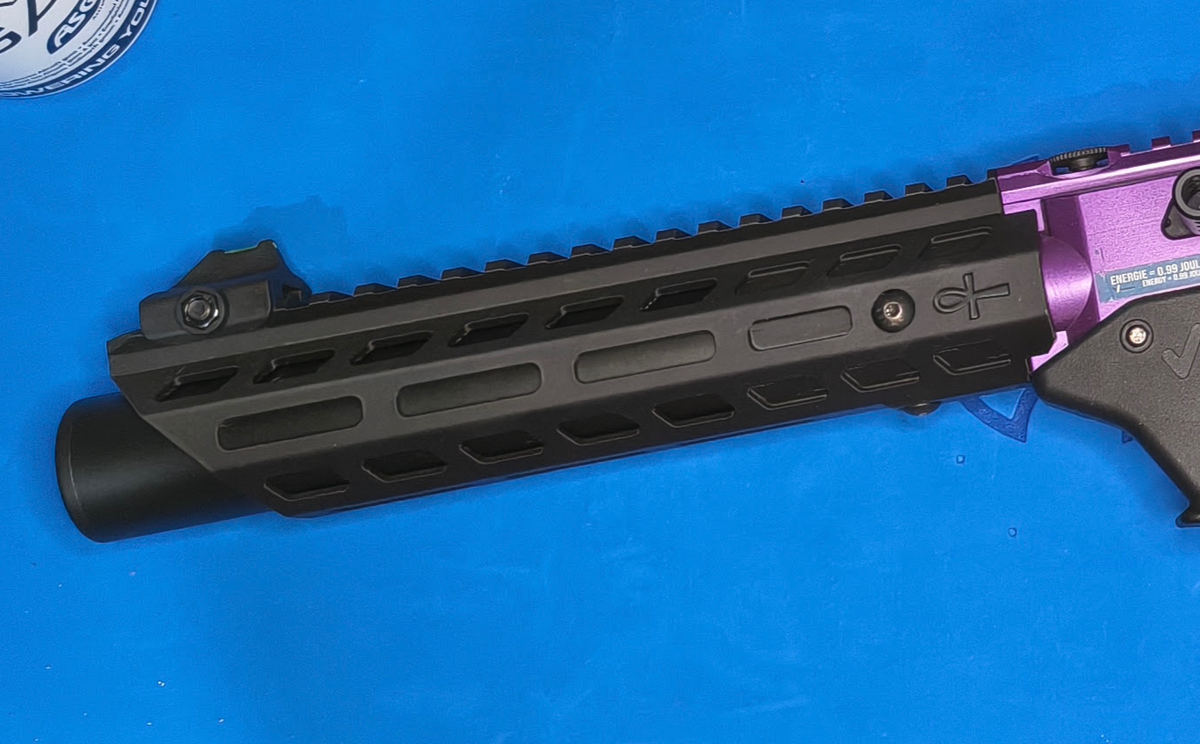

• VMP-2M is 280mm / 11" with a style 0 barrel nut
